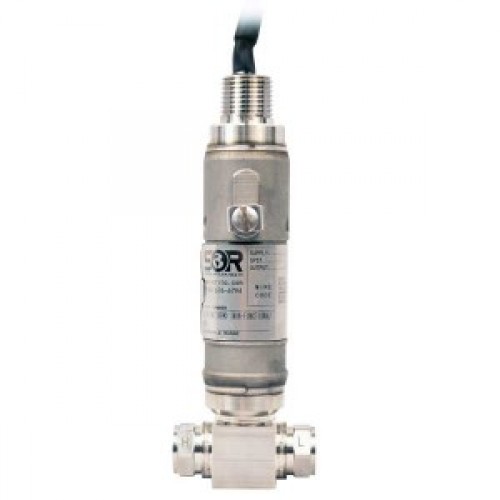

The 815PT smart pressure transmitter is a high accuracy, rugged, compact, loop-powered instrument that is ideally suited for general purpose or hazardous locations where space is limited. The 815PT offers many industry standard outputs as well as a solid-state relay output to meet applications where low-cost, discrete and continuous monitoring is required or preferred. The 815PT is easily configured using HART??7 Communication Protocol and Modbus RTU Serial Communications or when setting the zero and span set points with a magnet and on-body contact points. Standard 3-year warranty.
Features:
- HART 7 communication protocol with 4-20 mA output
- 1-5 VDC (low-power) mode of operation output
- Modbus RTU (RS-485) serial communications
- Configurable normally open solid-state switch output (SPST)
- +/-0.10% (URL) continuous output accuracy
- Compact, 316 stainless steel, explosion proof housing
- Local Indicating Display option available
- Hermetically sealed leads
- Zero and span magnetic targets located on casting
- EMC (EMI/RFI) protection
- NEMA 4X, IP66 housing
- FM and ATEX certified for hazardous locations in U.S., Canada and Europe
- Dual Seal approval available
- Absolute Pressure range options
